The Problem

The protractor is ubiquitous and instantly recognizable.

Yet the design itself is not great to say the least, and we have lived with this suboptimal design since we first set eyes on a protractor in elementary education, source of countless frustrating hours, a sin to the beauties of the design world.

Key Issues:

  • Drawing process is long and tedious

  • Measurements for short segments are inaccurate

  • Inability to measure the edges of objects.

What’s more, the design has remained virtually unchanged since it was first patented in 1894.

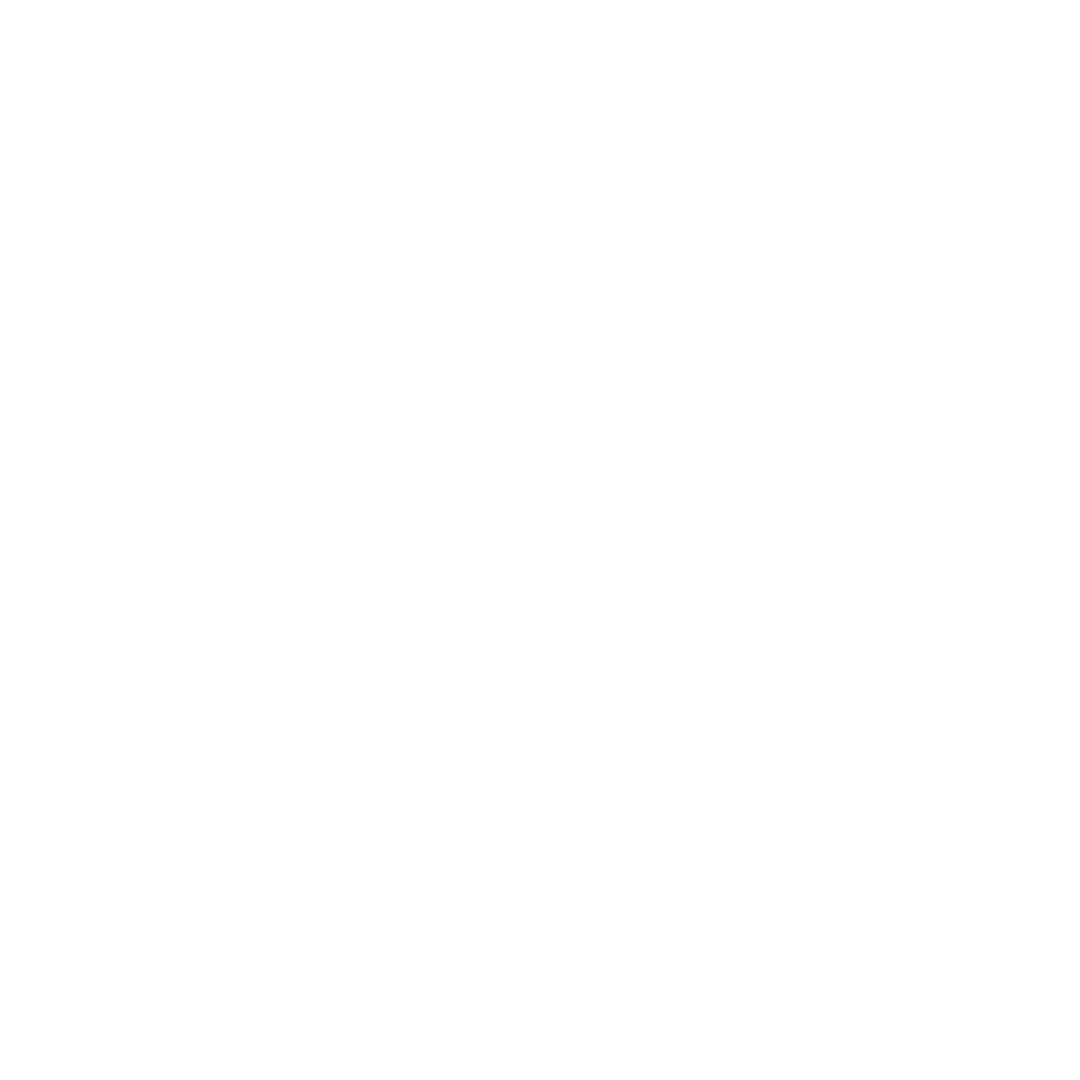

A black background with a white protractor measuring angles from 0 to 180 degrees, with markings for each degree and larger markings at every 10 degrees.

That is, until today…

The Solution

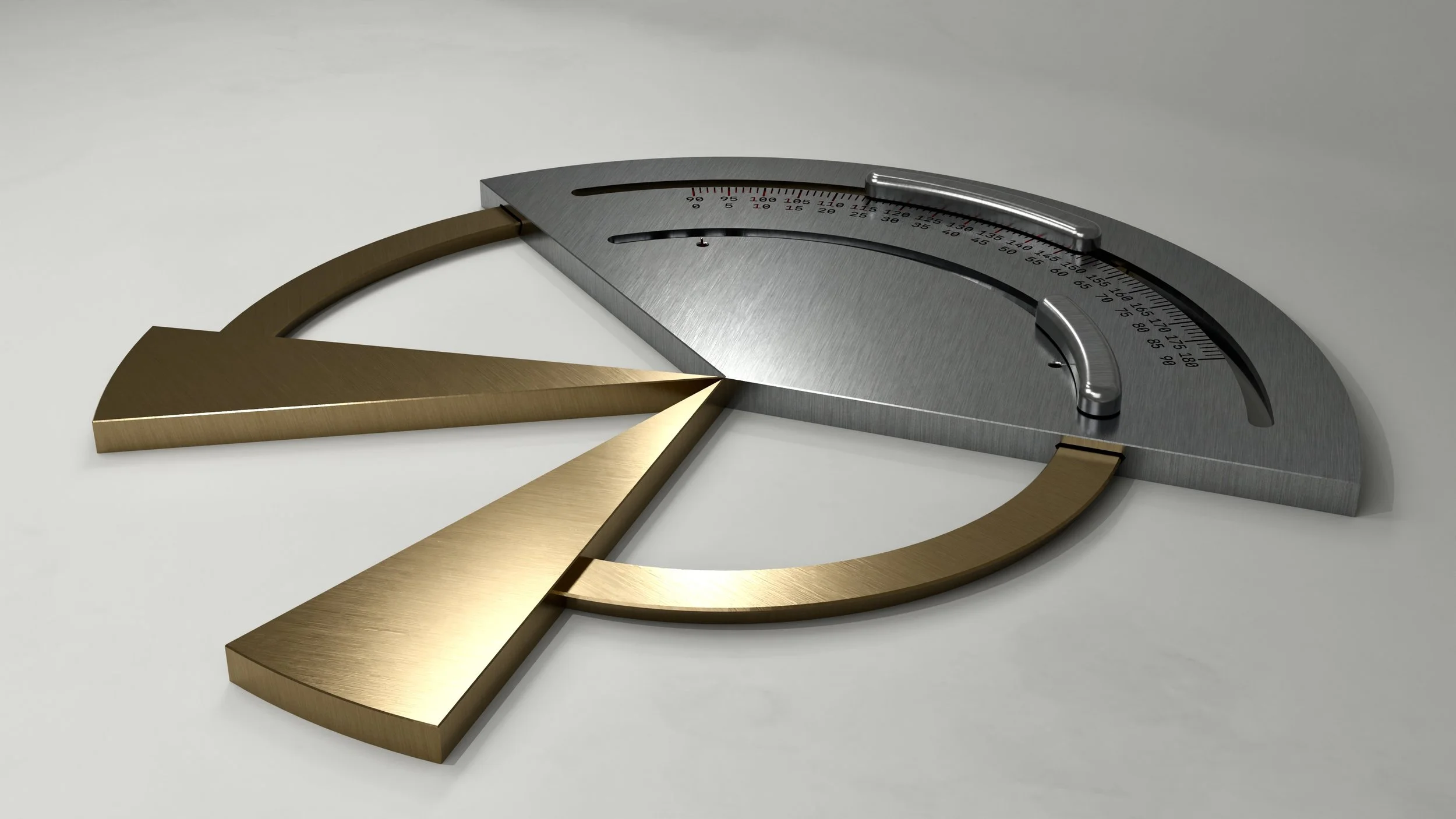

The ZeroPivot Protractor was born to do everything the “Classic” protractors cannot.

A line drawing of a protractor with a mechanical gears and rulers design.

Using a Protractor has never been simpler. Slide, mark, and measure all in just one step.

A black and white pie chart with striped sections and a circle outline.

Innovative guide rail system helps keep extenders in track.

Close-up of a metallic, curved sorting mechanism with numbered slots in black and red text, used for processing or sorting items.

High quality aluminum body with brass highlights enhances its appearance and resilience.

Line drawing of a circular saw blade with sharp teeth on a black background.

Knurled handles offers a firm and precise hold.
